FS1A THRU FS1M Dual Channel Mosfet Reverse Voltage - 50 To 1000 Volts

Name: FS1A THRU FS1M Dual Channel Mosfet Reverse Voltage 50 To 1000 Volts
Brand: Hua Xuan Yang
Price: 1 USD

Place of Origin : ShenZhen China

Brand Name : Hua Xuan Yang

Certification : RoHS、SGS

MOQ : 1000-2000 PCS

Price : Negotiated

Packaging Details : Boxed

Delivery Time : 1 - 2 Weeks

Payment Terms : L/C T/T Western Union

Supply Ability : 18,000,000PCS / Per Day

Model Number : FS1A

Type : SWITCHING DIODESOD

FEATURE : Low reverse leakage

Polarity : Color band denotes cathode end

Weight : 0.04 ounce, 1.10 grams

Product ID : FS1A THRU FS1M

Case : JEDEC DO-41 molded plastic body

Contact Now

FS1A THRU FS1M SURFACE MOUNT FAST RECOVERY RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current -1.0 Ampere

FEATURE

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

For surface mounted applications

Low reverse leakage

Built-in strain relief,ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed:

250 C/10 seconds at terminals

Glass passivated chip junction

FS1A THRU FS1M Dual Channel Mosfet Reverse Voltage - 50 To 1000 Volts

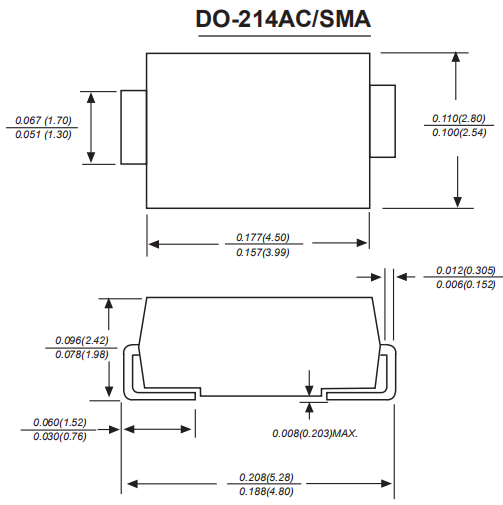

Case : JEDEC DO-214AC molded plastic body over passivated chip

Terminals : Solder plated, solderable per MIL-STD-750,

Method 2026

Polarity : Color band denotes cathode end

Mounting Position : Any

Weight :0.002 ounce, 0.07 grams

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.04 ounce, 1.10 grams

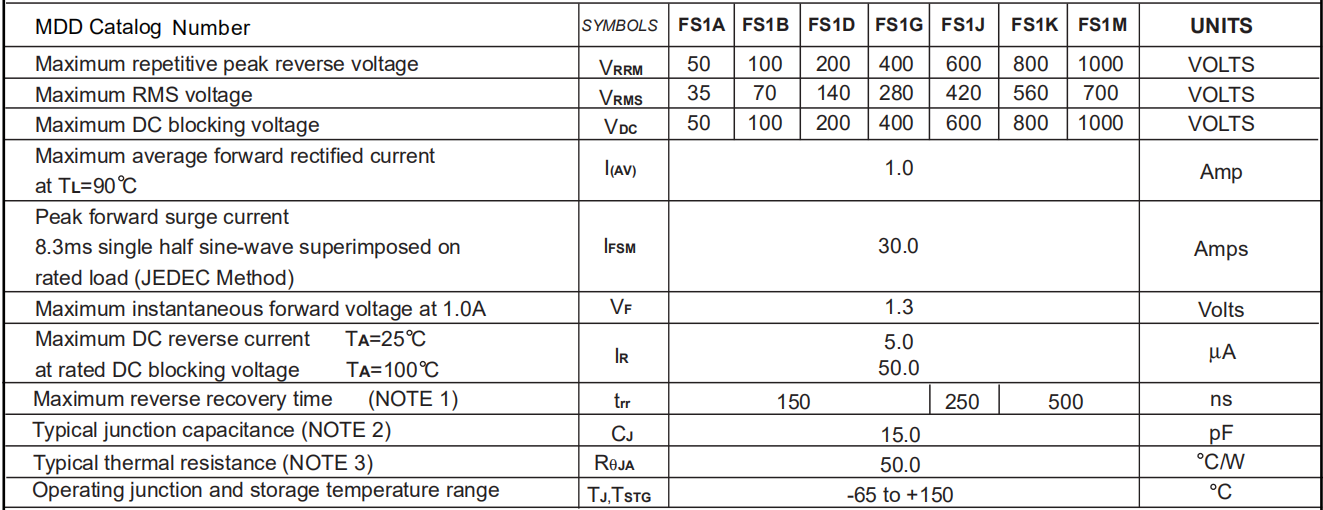

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

Note:

1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounte

RATINGS AND CHARACTERISTIC CURVES 1N4942 THRU 1N4948
