HXY3404 Mos Field Effect Transistor SOT-23 Plastic Encapsulated

Product Categories

Shenzhen Hua Xuan Yang Electronics Co.,Ltd

Contact Now

Name: HXY3404 Mos Field Effect Transistor SOT23 Plastic Encapsulated
Brand: Hua Xuan Yang
Price: 1 USD

Place of Origin : ShenZhen China

Brand Name : Hua Xuan Yang

Certification : RoHS、SGS

MOQ : 1000-2000 PCS

Price : Negotiated

Packaging Details : Boxed

Delivery Time : 1 - 2 Weeks

Payment Terms : L/C T/T Western Union

Supply Ability : 18,000,000PCS / Per Day

Model Number : HXY3404

Product name : Mosfet Power Transistor

Junction temperature : 150℃

Material : Silicon

Case : Tape/Tray/Reel

Type : mosfet transistor

Contact Now

SOT-23 Plastic-Encapsulate MOSFETS HXY3404 N-Channel Enhancement Mode Field Effect Transistor

Product Summary

ID= 6.0 A VDSS=20v

RDS(on) <32 mΩ VGS =4.5V

RDS(on) <40 mΩ VGS =2.5V

FEATURE

TrenchFET Power MOSFET

APPLICATION

DC/DC Converters

Load Switching for Portable Applications

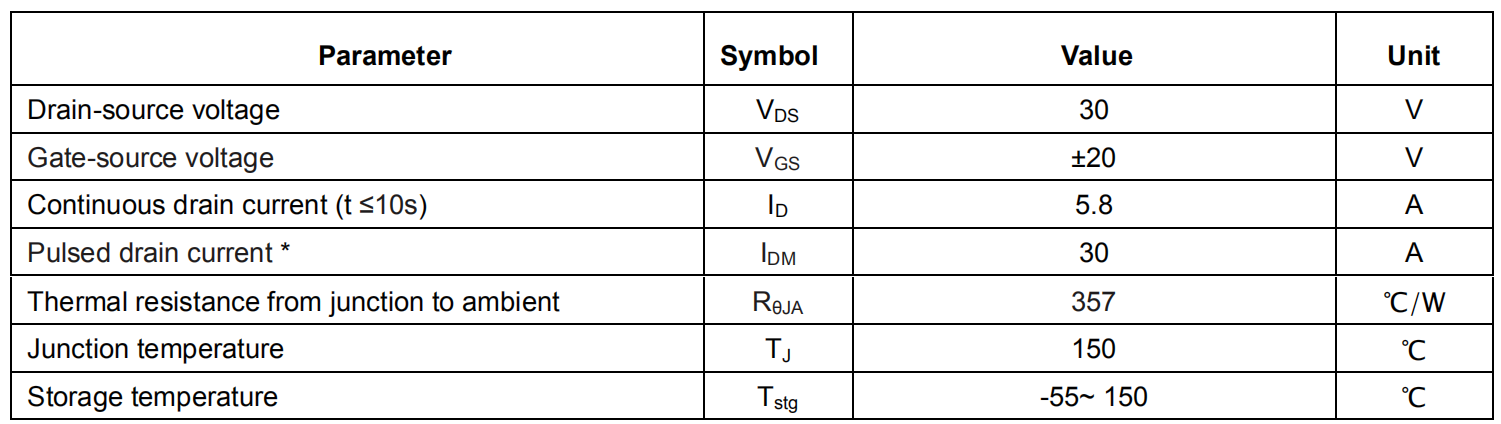

Maximum ratings (Ta=25℃ unless otherwise noted)

T =25 a ℃ unless otherwise specified
