MMBT4403 NPN High Speed Switching Transistor High Performance

Place of Origin : ShenZhen China

Brand Name : Hua Xuan Yang

Certification : RoHS、SGS

MOQ : 1000-2000 PCS

Price : Negotiated

Packaging Details : Boxed

Delivery Time : 1 - 2 Weeks

Payment Terms : L/C T/T Western Union

Supply Ability : 18,000,000PCS / Per Day

Model Number : MMBT4403

FEATURE : Low Leakage

Power mosfet transistor : SOT-23 Plastic-Encapsulate Transistors

Product ID : MMBT4403

Type : Switching Diodesod

Contact Now

SOT-23 Plastic-Encapsulate Transistors MMBT4403 TRANSISTOR (NPN)





FEATURE


 Switching Transistor

Marking :2T







MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)


Symbol Parameter Value Unit
VCBO Collector-Base Voltage -40 V
VCEO Collector-Emitter Voltage -40 V
VEBO Emitter-Base Voltage -5 V
IC Collector Current -600 mA
PC Collector Power Dissipation 300 mW
RΘJA Thermal Resistance From Junction To Ambient 417 ℃/W
Tj Junction Temperature 150 ℃
Tstg Storage Temperature -55～+150 ℃




ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)



Parameter Symbol Test Conditions Min Typ Max Unit
Collector-base breakdown voltage V(BR)CBO IC=-100μA,IE=0 -40     V
Collector-emitter breakdown voltage V(BR)CEO IC=-1mA,IB=0 -40     V
Emitter-base breakdown voltage V(BR)EBO IE=-100μA ,IC=0 -5     V
Collector cut-off current ICBO VCB=-35V,IE=0     -0.1 μA
Collector cut-off current ICEX VCE=-35V, VBE=0.4V     -0.1 μA
Emitter cut-off current IEBO VEB=-4V,IC=0     -0.1 μA







DC current gain

 hFE1 VCE=-1V, IC=-0.1mA 30
  hFE2 VCE=-1V, IC=-1mA 60
  hFE3 VCE=-1V, IC=-10mA 100
  hFE4 VCE=-2V, IC=-150mA 100   300
  hFE5 VCE=-2V, IC=-500mA 20



Collector-emitter saturation voltage



VCE(sat)

 IC=-150mA,IB=-15mA     -0.4 V
    IC=-500mA,IB=-50mA     -0.75 V



Base-emitter saturation voltage



VBE(sat)

 IC=-150mA,IB=-15mA     -0.95 V
    IC=-500mA,IB=-50mA     -1.3 V
Transition frequency fT VCE=-10V, IC=-20mA,f =100MHz 200     MHz
Delay time td

VCC=-30V, VBE(off)=-0.5V

IC=-150mA , IB1=-15mA

     15 ns
Rise time tr       20 ns
Storage time ts

VCC=-30V, IC=-150mA

IB1=IB2=-15mA

     225 ns
Fall time tf       60 ns

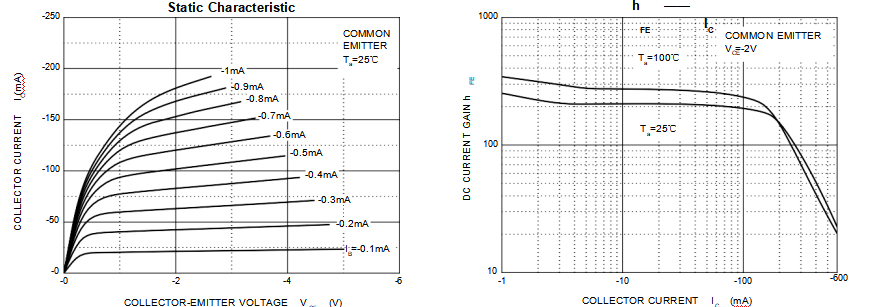

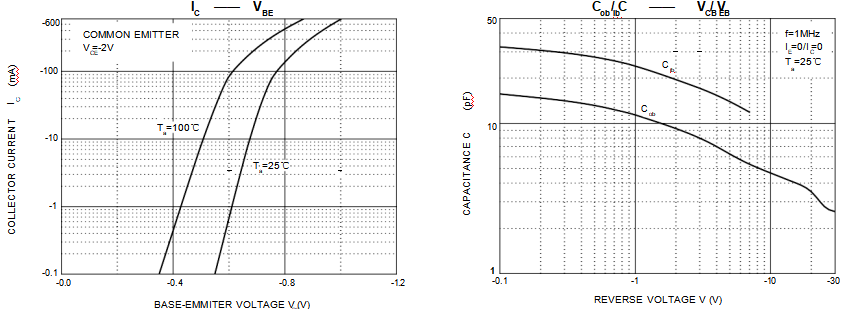

Typical Characterisitics
 MMBT4403 NPN High Speed Switching Transistor High Performance

MMBT4403 NPN High Speed Switching Transistor High Performance

MMBT4403 NPN High Speed Switching Transistor High Performance











 Package Outline Dimensions


Symbol Dimensions In Millimeters Dimensions In Inches
  Min Max Min Max
A 0.900 1.150 0.035 0.045
A1 0.000 0.100 0.000 0.004
A2 0.900 1.050 0.035 0.041
b 0.300 0.500 0.012 0.020
c 0.080 0.150 0.003 0.006
D 2.800 3.000 0.110 0.118
E 1.200 1.400 0.047 0.055
E1 2.250 2.550 0.089 0.100
e 0.950 TYP 0.037 TYP
e1 1.800 2.000 0.071 0.079
L 0.550 REF 0.022 REF
L1 0.300 0.500 0.012 0.020
θ 0° 8° 0° 8°
