TO-92 Plastic-Encapsulate Transistors C945  TRANSISTOR (NPN)





FEATURE


Ÿ Excellent hFE linearity

Ÿ Low noise

Ÿ Complementary to A733





MARKING

C945=Device code

Solid dot=Green molding compound device, if none,the normal device

Z=Rank of hFE

XXX=Code





TO-92 C945 Tip Power Transistors VEBO 5V Low Noise NPN





ORDERING INFORMATION

Part Number Package Packing Method Pack Quantity
C945 TO-92 Bulk 1000pcs/Bag
C945-TA TO-92 Tape 2000pcs/Box










MAXIMUM RATINGS (Ta =25 Š unless otherwise noted)



Symbol Parameter Value Unit
VCBO Collector-Base Voltage 60 V
V CEO Collector-Emitter Voltage 50 V
V EBO Emitter-Base Voltage 5 V
I C Collector Current -Continuous 150 mA
PC Collector Power Dissipation 400 mW
TJ Junction Temperature 150 ℃
Tstg St orage Temperature -55~+150 ℃










ELECTRICAL CHARACTERISTICS





Ta=25 Š unless otherwise specified




Parameter Symbol Test conditions Min Typ Max Unit
Collector-base breakdown voltage V(BR)CBO IC=1mA , IE=0 60     V
Collector-emitter breakdown voltage V(BR)CEO IC=100μA , IB=0 50     V
Emitter-base breakdown voltage V(BR)EBO IE=100 μA, IC=0 5     V
Collector cut-off current ICBO VCB=60V, IE=0     0.1 μA
Collector cut-off current ICEO VCE=45V, IB=0     0.1 μA
Emitter cut-off current IEBO VEB=5V ,IC=0     0.1 μA



DC current gain

 hFE(1) VCE=6V , IC=1mA 70   700
  hFE(2) VCE=6V , IC=0.1mA 40
Collector-emitter saturation voltage VCE(sat) IC=100mA, IB=10mA     0.3 V
Base-emitter saturation voltage VBE(sat) IC=100mA, IB=10mA     1 V
Transition frequency fT VCE=6V,IC=10mA,f=30MHz 200     MHz
Collector output capacitance Cob VCB=10V,IE=0,f=1MHz     3.0 pF



Noise figure



NF

VCE=6V,IC=0.1mA

RG=10kΩ,f=1MHz





10



dB




CLASSIFICATION OF hFE(2)

Rank O Y GR BL
Range 70-140 120-240 200-400 350-700

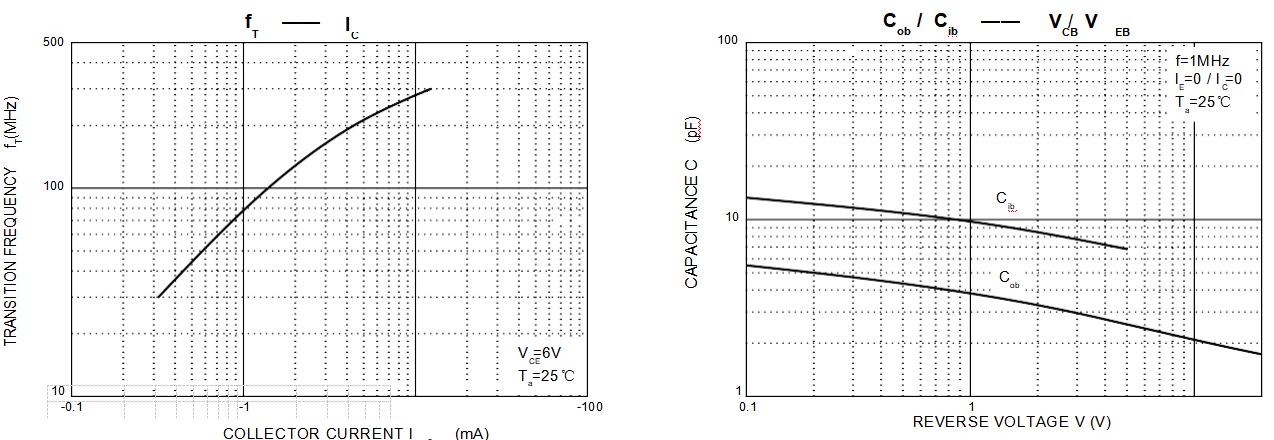

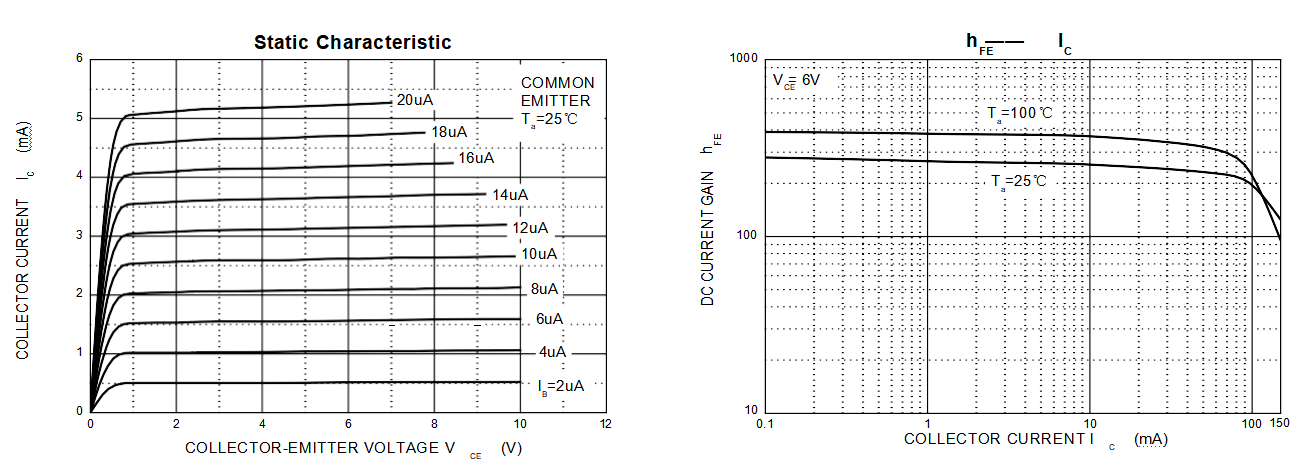

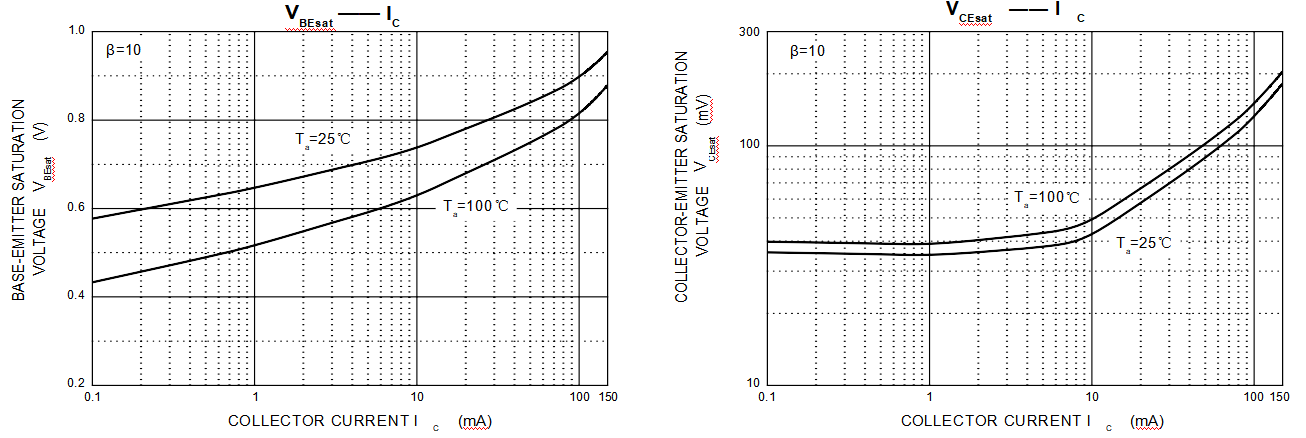

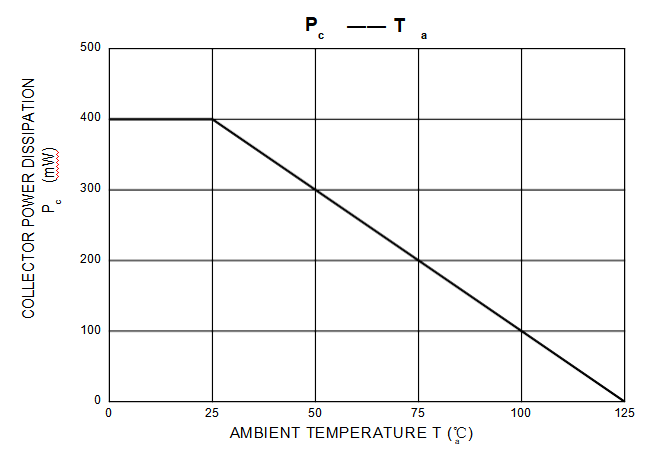

Typical Characteristics



TO-92 C945 Tip Power Transistors VEBO 5V Low Noise NPN

TO-92 C945 Tip Power Transistors VEBO 5V Low Noise NPN

TO-92 C945 Tip Power Transistors VEBO 5V Low Noise NPN

TO-92 C945 Tip Power Transistors VEBO 5V Low Noise NPN





 Package Outline Dimensions


Symbol Dimensions In Millimeters Dimensions In Inches
  Min Max Min Max
A 3.300 3.700 0.130 0.146
A1 1.100 1.400 0.043 0.055
b 0.380 0.550 0.015 0.022
c 0.360 0.510 0.014 0.020
D 4.300 4.700 0.169 0.185
D1 3.430   0.135
E 4.300 4.700 0.169 0.185
e 1.270 TYP 0.050 TYP
e1 2.440 2.640 0.096 0.104
L 14.100 14.500 0.555 0.571
0   1.600   0.063
h 0.000 0.380 0.000 0.015
