TO-92 Plastic-Encapsulate Transistors A733 TRANSISTOR (PNP)





FEATURE


Power dissipation

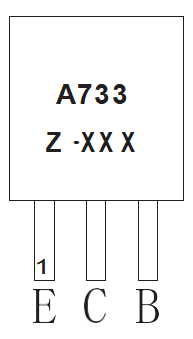

MARKING

  • A733=Device code
  • Solid dot=Green molding compound device, if none,the normal device
  • Z=Rank of hFE
  • XXX=Code



A733 PNP Tip Power Transistors TO-92 Plastic - Encapsulate Transistors





ORDERING INFORMATION

Part Number Package Packing Method Pack Quantity
A733 TO-92 Bulk 1000pcs/Bag
A733-TA TO-92 Tape 2000pcs/Box










MAXIMUM RATINGS (Ta =25 Š unless otherwise noted)



Symbol Parameter Value Unit
VCBO Collector-Base Voltage -60 V
VCEO Collector-Emitter Voltage -50 V
VEBO Emitter-Base Voltage -5 V
I C Collector Current -Continuous -100 mA
PC Collector Power Dissipation 250 mW
TJ Junction Temperature 150 ℃
Tstg Junction and Storage Temperature -55~+150 ℃










ELECTRICAL CHARACTERISTICS





Ta=25 Š unless otherwise specified




Parameter Symbol Test conditions Min Typ Max Unit
Collector-base breakdown voltage V(BR)CBO IC= -50uA,IE=0 -60     V
Collector-emitter breakdown voltage V(BR)CEO IC= -1mA , IB=0 -50     V
Emitter-base breakdown voltage V(BR)EBO IE= -50uA, IC=0 -5     V
Collector cut-off current ICBO VCB= -60V, IE=0     -0.1 uA
Emitter cut-off current IEBO VEB= -5 V, IC=0     -0.1 uA
DC current gain hFE VCE= -6V, IC= -1mA 90 200 600
Collector-emitter saturation voltage VCE(sat) IC= -100mA, IB=- 10mA   -0.18 -0.3 V
Base-emitter voltage VBE VCE=-6V,IC=-1.0mA -0.58 -0.62 -0.68 V
Transition frequency fT VCE=-6V,IC=-10mA 100     MHz
Collector output capacitance Cob VCB=-10V,IE=0,f=1MHZ     6 pF



Noise figure



NF

VCE=-6V,IC=-0.3mA,

Rg=10kΩ,f=100HZ





20



dB




CLASSIFICATION OF hFE(2)

Rank R Q P K
Range 90-180 135-270 200-400 300-600
